web-features
A reference dataset for the web platform
WebDX CG
people from Microsoft, W3C, Google, Apple, Mozilla, Igalia, OpenWebDocs, standards people, but also web devs.
Started in Nov. 2022.
Work on research, to understand gaps/needs of web devs.
But also on cataloging web features to drive consistent communication about web platform, and about features devs
can use confidently.
A reference dataset for the web platform
Intro slide only, move on to the next slide.
This is for devs mostly, but it has benefits for all. We're starting to see how it could benefit browser vendor prioritization efforts for example.
Doing it for developers primarily, but also with them more and more. There's been quite a few people on the repo from outside of the usual browser/standards circles.
First time we have a common language for the ecosystem : devs, vendors, specs, to talk about features. Reference dataset.
Level of features is designed to match how developers perceive features. Spec is sometimes too coarse grained,
and not meant for web devs. BCD is too fine grained.
All depends on how developers perceive features. Sometimes a single CSS value is an entire feature (subgrid), so
we have entries in the repo with just that. Other times, a feature contains a lot of APIs.
That's not a problem on the repo. We have no rules around size.
All starts with IDs, making the decision about what is the feature, how it’s called, what’s its scope, what’s in vs. what’s out. For the developers best interest, but in the way that makes it possible for everyone to know what they are talking about.

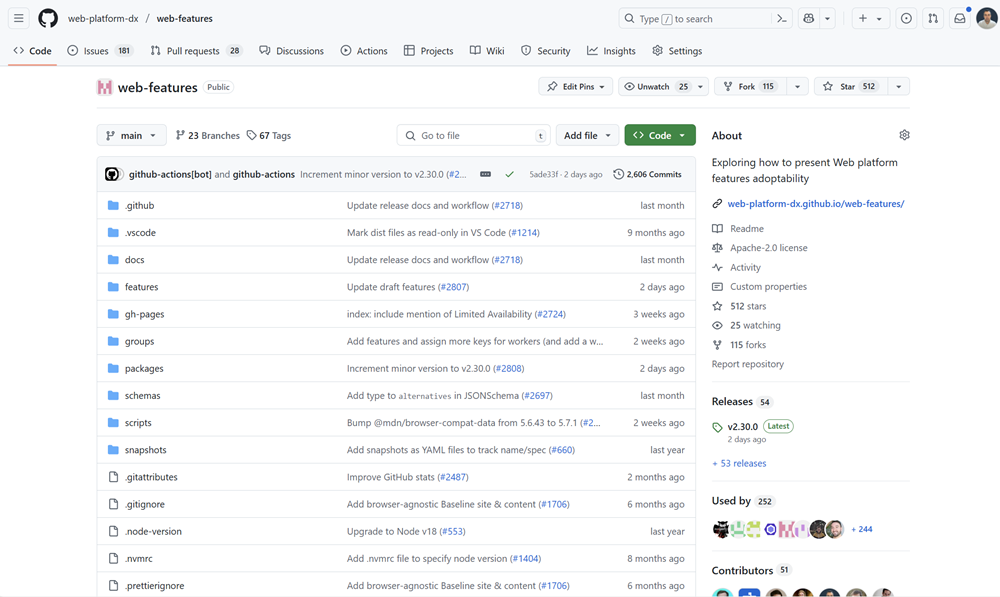

Features are yaml files, usually very short, with minimum viable data
Unique ID is the most important, so that other sources of data can link to it and add more interesting things to the dataset, without us having to maintain it all.
Spec, short description, and list of BCD keys, to get compat information. We work with OWD folks who maintain BCD. Very good integration of the 2 projects.
Features are visible on the explorer website, which the CG maintains, and which goal is to visualize the data and its connections.

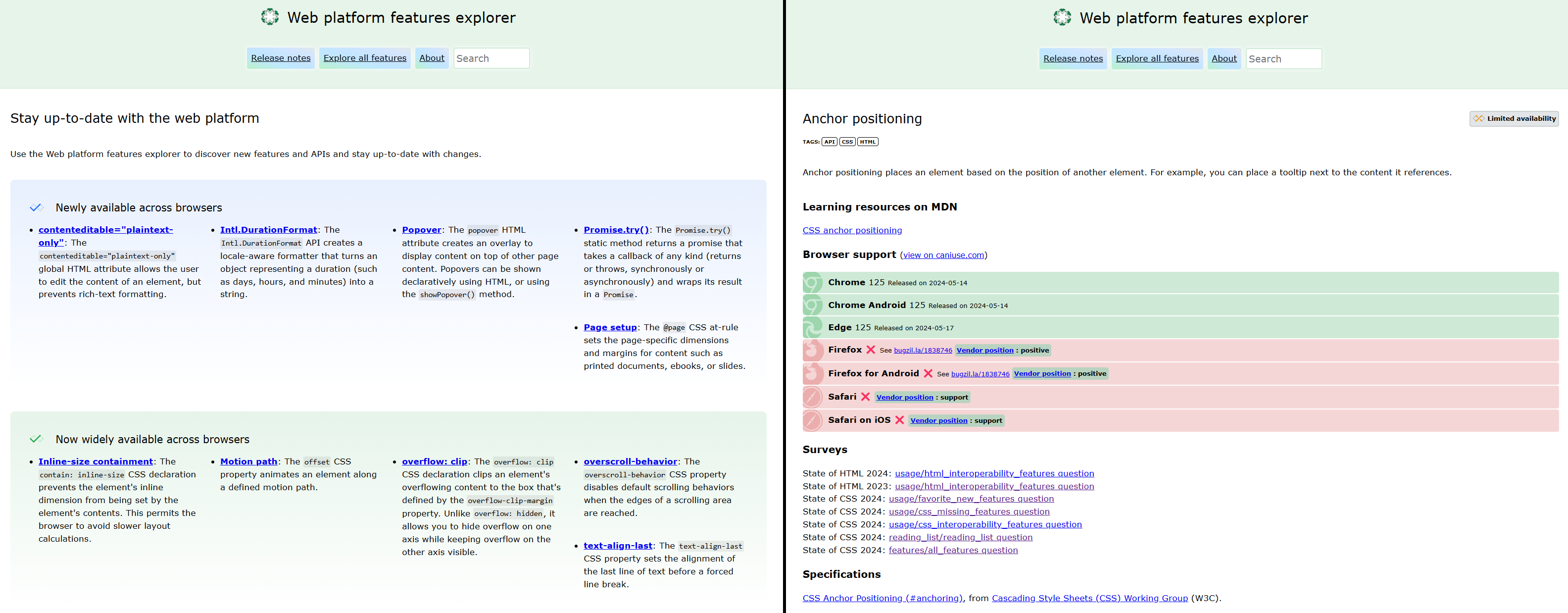

Two examples of the explorer site.
Home page showing that the data lets us show release-notes type of information for the entire platform, not just one browser.
And an individual feature, showing all of the data that web-features contains about that feature, plus all of the data we can connect to, such as vendor positions, or surveys.

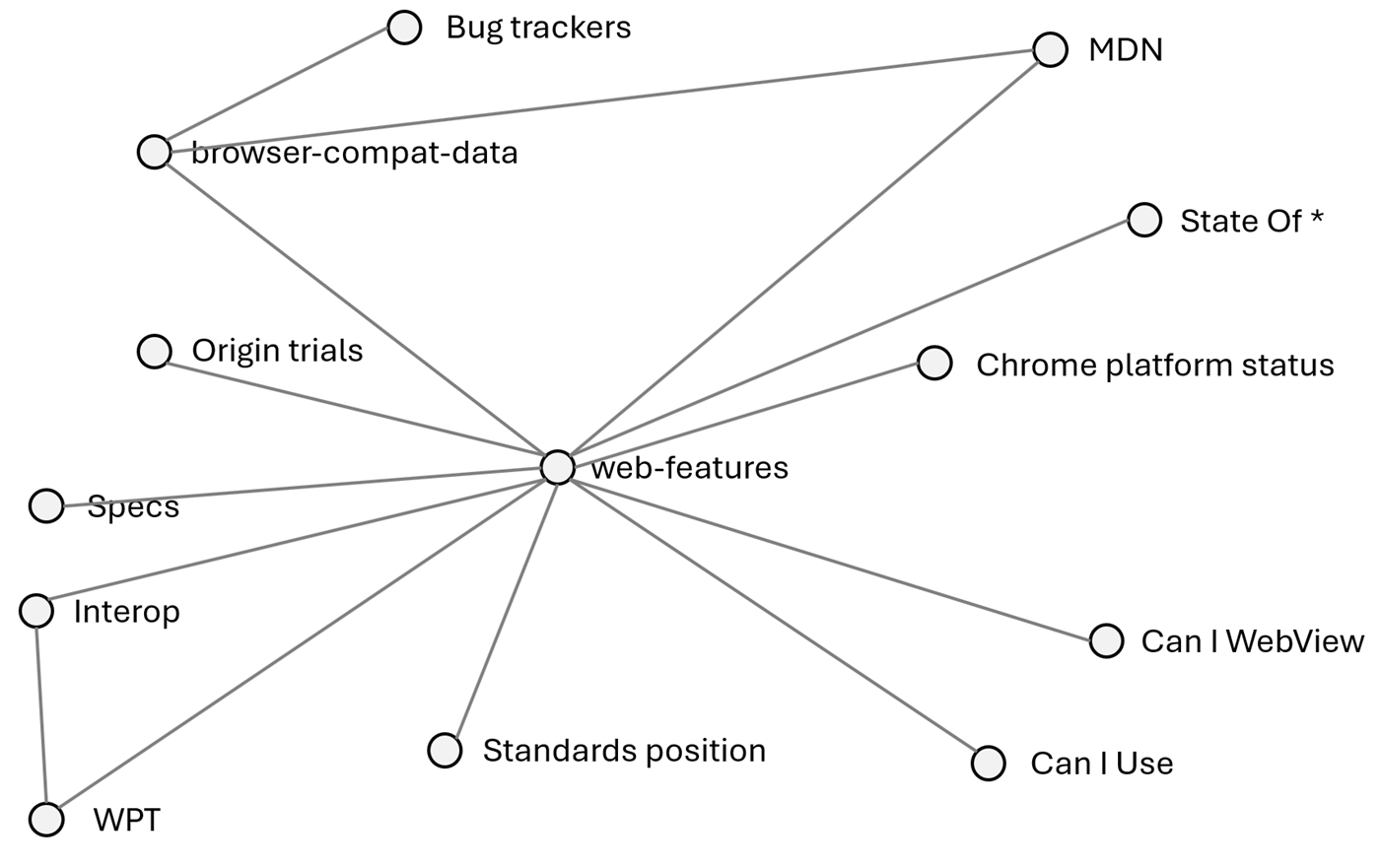

Thanks to this common language, we can connect to other web feature data sources in the ecosystem.
specs, compat data, docs, bugs, surveys, vendor positions, wpt, interop, origin trials, etc.
Some of it is maintained by us directly. Some belongs to other data sources, by means of mapping to our IDs.
Makes it possible to navigate the web platform and get up to date information about features from actual sources of info.
Raises visibility into the how the sausage is made to devs. Makes it easier for them to get involved. Often hard for specs to get involvement from devs. This can help.
Makes it easier for devs to contribute and make their voices heard.
Has a lot of benefits, one is baseline, which I'll talk about next. But also helps with other things.
Needs constant maintenance. Features get added and removed. But features also evolve over time, especially early in their lifetimes.
Intro slide only, move on to the next slide.
Was started by Google who still owns the name and logos
core browser set and definition is under the owner group within webdx. We can make changes if needed, and will make changes if it's for the developers' best interest.
Doing the very hard work of simplifying an inherently complex field
Web is a continuum, nothing is binary. Whether a thing is implemented doesn’t mean you can or can’t use it, or should/shouldn't use it. Can apply PE. Can use a polyfill. Is it accessible? Which browsers? Many aspects to consider before a developer can use a feature. A lot of testing too.
But, for most users, in most cases, we believe this simplification is useful as it reduces the time it takes for them to investigate a feature. If a feature is Baseline Widely Available (the highest level it can reach), there really is not much to investigate.
That's why you can see Baseline banners in places where devs make those decisions: MDN, caniuse, web.dev. Starting to appear in tools like ESLint, and VSCode.
How we communication about Baseline is key.
Baseline helps devs know when a thing is very safe to use.
But it can also hide a lot of the nuance. We work hard making sure that the non-Widely Available stages are not
perceived by devs as something they can't use.
We worked a lot with MDN in the early days on wording and colors, to make sure this worked.
We want Baseline to give confidence to devs, and signal when more testing/verification might be needed.
Aware that Baseline is perceived by some people, often experts, as too simplistic and hiding nuance.
We're engaging in discussions with them and willing to make changes.
Difficultly is finding the right way to convey nuance without making Baseline too complex, which would defeat its
purpose.
Aware that most of the target audience benefits from this, evidenced by early research which led to baseline. Also evidenced by recent adoption of the concept by more and more sites, blogs, tools.
We still want to continue engaging with the community and work on these hard problems. Don't want to hide part of
the platform.
Something that we spend time on. We, as co chairs, are pushing the group to think about and bring
solutions to.
What we're seeing is rapid growth in awareness of Baseline, and adoption of the tools that are based on it, or on web-features.
Web devs are responding positively, and we see more and more tools and blogs, on top of the initial push we did with MDN, and caniuse.
This helps promote the web platform in general, through ways that developers care about, and makes it easy and appealing for more people to also promote the platform.
Come talk with François and I later for any questions, or collaboration opportunities.
What could web-features be doing more/better for working groups and spec authors?
